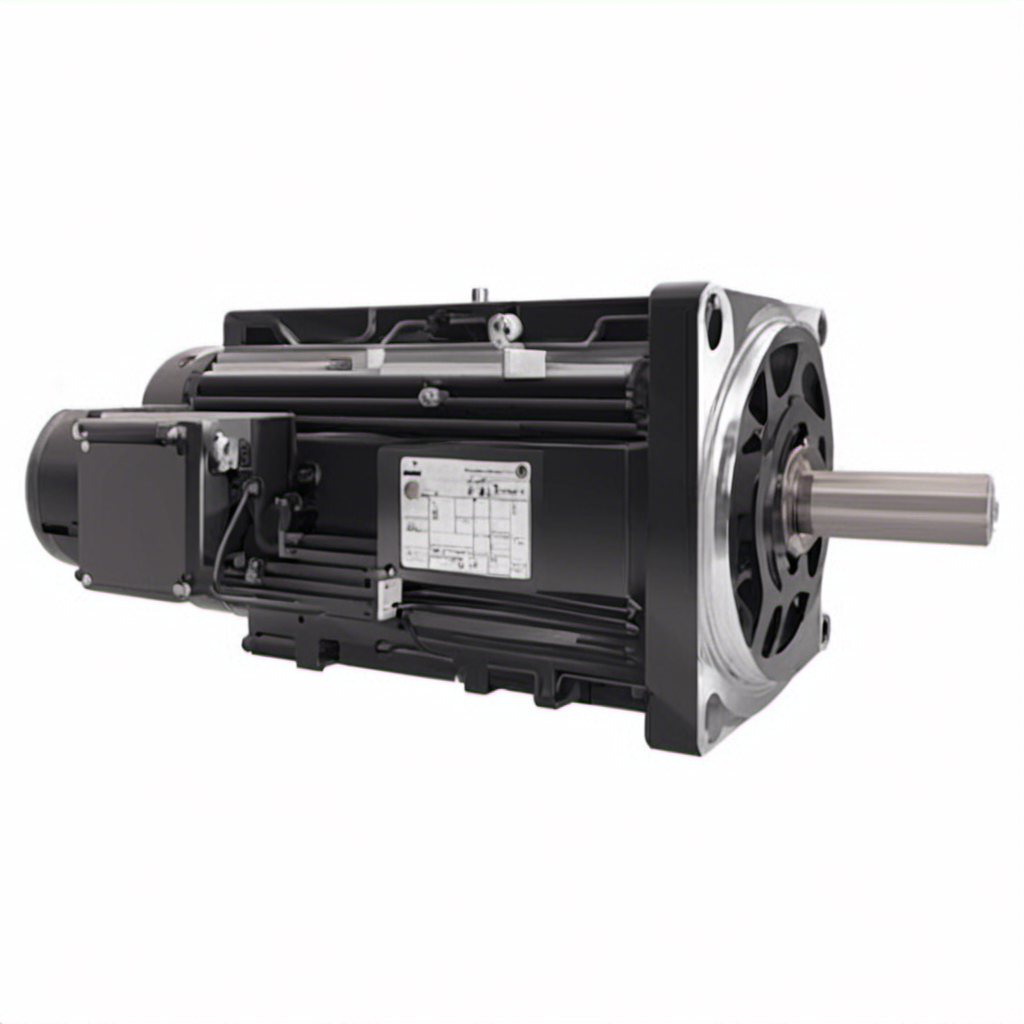

MPL-B580J-M-X231 PERMANENT MAGNET ROTARY MOTOR, SERVO MOTOR | Allen Bradley
Type number: MPL-B580J-M-X231, Part No.: MPLB580JMX231, from manufacturer: Allen Bradley, Catagory: MPL Low Inertia Drives & Motors, Servo Motor, Rotary, Low Inertia
della101@163.com
Products Categories
Product Description
| Module No. | MPL-B580J-M-X231 |
| Product name | Servo Motor, Rotary, Low Inertia, IEC, 240V AC, 1024 Sin/Cos, 4000 rpm Maximum, 8.25 N-M, 1/4 Turn Right Angle Rotatable DIN Connector, Hiperface Multi-Turn |
| Product description | MPL-B580J-M-X231 PERMANENT MAGNET ROTARY MOTOR, SERVO MOTOR | Allen Bradley |
| Part number | MPLB580JMX231 |
| Allen Bradley recommendation product | MPL-B640F-SJ74AA Servo Motor Servo, KINETIX; PERMANENT MAGNET ROTARY MOTOR | Allen Bradley |
| Voltage | 230 VAC, 240 VAC, 480 VAC |
| Manufacturer | Allen Bradley |
| Country of origin | United States |
| Warranty | 1-2 year |
| Shipping Method | 1.Ship worldwide, usually 5-7 days. 2. We use DHL, FedEx, UPS,TNT |
| Remark | If you need a specific firmware or series relating to MPL-B580J-M-X231, please call or email us, we probably have it in our large inventory. |
Product Catalogue
MPL-B580J-M-X231 PERMANENT MAGNET ROTARY MOTOR, SERVO MOTOR | Allen Bradley
Kinetix LDAT Integrated Linear Thruster Dimensions (Frame 50)
| Linear Thruster Cat. No. | Motor size (reference) | Stroke mm (in.) | L mm (in.) | M mm (in.) | A mm (in.) | B mm (in.) | C mm (in.) | N |
| LDAT-S051010-xxx | 100 | 100 (3.9) | 431.8 (16.998) | 232.70 (9.161) |
– | 51.35 (2.022) | 38.85 (1.530) |
4 |
| LDAT-S051020-xxx | 200 (7.9) | 531.8 (20.935) | ||||||
| LDAT-S051030-xxx | 300 (11.8) | 631.8 (24.872) | ||||||
| LDAT-S051040-xxx | 400 (15.7) | 731.8 (28.809) | ||||||
| LDAT-S051050-xxx | 500 (19.7) | 831.8 (32.746) | ||||||
| LDAT-S052010-xxx |
200 | 100 (3.9) | 531.8 (20.935) | 332.70 (13.098) |
66.35 (2.612) |
53.85 (2.120) | ||
| LDAT-S052020-xxx | 200 (7.9) | 631.8 (24.872) | ||||||
| LDAT-S052030-xxx | 300 (11.8) | 731.8 (28.809) | ||||||
| LDAT-S052040-xxx | 400 (15.7) | 831.8 (32.746) | ||||||
| LDAT-S052050-xxx | 500 (19.7) | 931.8 (36.683) | ||||||
| LDAT-S053010-xxx |
300 | 100 (3.9) | 631.8 (24.872) | 432.70 (17.035) | 216.35 (8.518) |
5 | ||
| LDAT-S053020-xxx | 200 (7.9) | 731.8 (28.809) | ||||||
| LDAT-S053030-xxx | 300 (11.8) | 831.8 (32.746) | ||||||
| LDAT-S053040-xxx | 400 (15.7) | 931.8 (36.683) | ||||||
| LDAT-S053050-xxx | 500 (19.7) | 1031.8 (40.620) | ||||||
| LDAT-S054010-xxx |
400 | 100 (3.9) | 731.8 (28.809) | 532.70 (20.972) | 266.35 (10.486) | |||
| LDAT-S054020-xxx | 200 (7.9) | 831.8 (32.746) | ||||||
| LDAT-S054030-xxx | 300 (11.8) | 931.8 (36.683) | ||||||
| LDAT-S054040-xxx | 400 (15.7) | 1031.8 (40.620) | ||||||
| LDAT-S054050-xxx | 500 (19.7) | 1131.8 (44.557) |
