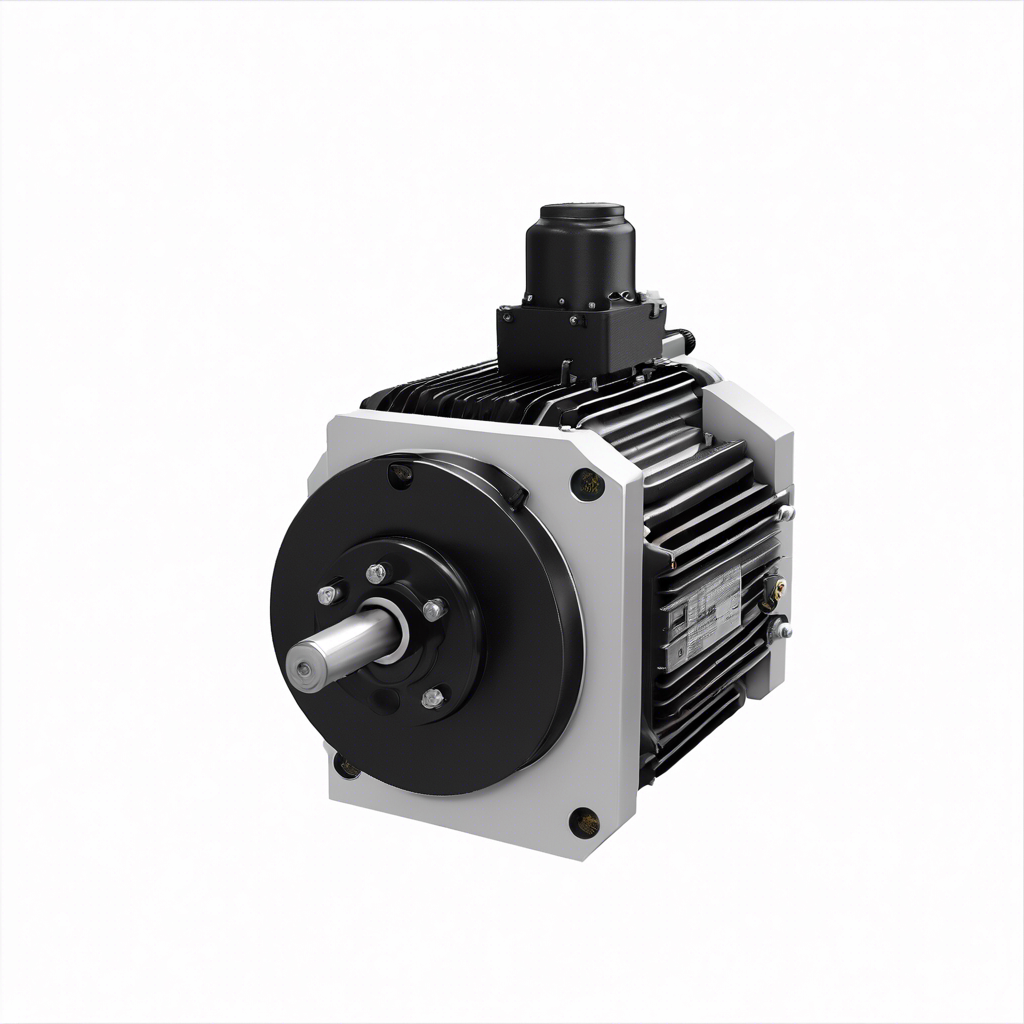

VPL-A0752E-PJ12AS Servo Motor, Low Inertia, 240V AC | Allen Bradley
Type number: VPL-A0752E-PJ12AS, Part No.: VPLA0752EPJ12AS, from manufacturer: Allen Bradley, Catagory: Kinetix VP Servo Motors Drives & Motors, VPL Low Inertia Motors
della101@163.com
| Module No. | VPL-A0752E-PJ12AS |
| Product name | 75mm Bolt Circle Frame Size, 2 (Two) Magnet Stacks, 3500 RPM Rated Speed, Multi-turn 18 bit, Keyed Shaft, SpeedTec Right … |
| Product description | VPL-A0752E-PJ12AS Servo Motor, Low Inertia, 240V AC | Allen Bradley |
| Part number | VPLA0752EPJ12AS |
| Allen Bradley recommendation product | VPL-A0752E-PJ14AA VPL Low Inertia Motors | Allen Bradley |
| Voltage | 230 VAC, 240 VAC, 480 VAC |
| Manufacturer | Allen Bradley |
| Country of origin | United States |
| Warranty | 1-2 year |
| Shipping Method | 1.Ship worldwide, usually 5-7 days. 2. We use DHL, FedEx, UPS,TNT |
| Remark | If you need a specific firmware or series relating to VPL-A0752E-PJ12AS, please call or email us, we probably have it in our large inventory. |
VPL-A0752E-PJ12AS Servo Motor, Low Inertia, 240V AC | Allen Bradley
Performance Specifications (Frame 50) with 200V-class Drives (continued)
| Linear Thruster
Cat. No. |
Velocity, max
230VAC m/s |
System Continuous
Stall Current Amps 0-pk |
System Continuous
Stall Force N (lb) |
System Peak
Stall Current Amps 0-pk |
System Peak
Stall Force N (lb) |
Rated Output
230VAC kW |
| LDAT-S054010-Dxx | 4.4 |
12.4 |
509 (114) |
45.5 |
1453 (327) |
1.87 |
| LDAT-S054020-Dxx
… LDAT-S054050-Dxx |
5.0 | 2.05 | ||||
| LDAT-S054010-Exx
… LDAT-S054050-Exx |
2.6 | 6.2 | 22.7 | 1.02 |
Performance Specifications (Frame 70) with 200V-class Drives
| Linear Thruster
Cat. No. |
Velocity, max
230VAC m/s |
System Continuous
Stall Current Amps 0-pk |
System Continuous
Stall Force N (lb) |
System Peak
Stall Current Amps 0-pk |
System Peak
Stall Force N (lb) |
Rated Output
230VAC kW |
| LDAT-S072010-Dxx
… LDAT-S072070-Dxx |
3.5 | 6.0 |
364 (82) |
22.0 |
1055 (237) |
1.03 |
| LDAT-S072010-Exx
… LDAT-S072070-Exx |
1.7 | 3.0 | 11.0 | 0.47 | ||
| LDAT-S073010-Dxx
… LDAT-S073070-Dxx |
3.5 | 9.0 |
554 (125) |
32.8 |
1576 (354) |
1.57 |
| LDAT-S073010-Exx
… LDAT-S073070-Exx |
1.2 | 3.0 | 10.9 | 0.41 | ||
| LDAT-S074010-Dxx
… LDAT-S074070-Dxx |
3.5 | 11.9 |
730 (164) |
43.5 |
2088 (469) |
2.08 |
| LDAT-S074010-Exx
… LDAT-S074070-Exx |
1.8 | 6.0 | 21.7 | 0.95 | ||
| LDAT-S076010-Dxx
… LDAT-S076070-Dxx |
3.5 | 18.2 |
1122 (252) |
66.4 |
3189 (717) |
3.17 |
| LDAT-S076010-Exx
… LDAT-S076070-Exx |
1.8 | 9.1 | 33.2 | 1.45 |
Performance Specifications (Frame 100) with 200V-class Drives
| Linear Thruster
Cat. No. |
Velocity, max
230VAC m/s |
System Continuous
Stall Current Amps 0-pk |
System Continuous
Stall Force N (lb) |
System Peak
Stall Current Amps 0-pk |
System Peak
Stall Force N (lb) |
Rated Output
230VAC kW |
| LDAT-S102010-Dxx
… LDAT-S102090-Dxx |
2.6 | 5.7 |
456 (103) |
21.0 |
1289 (290) |
0.96 |
| LDAT-S102010-Exx
… LDAT-S102090-Exx |
1.3 | 2.9 | 10.5 | 0.42 | ||
| LDAT-S103010-Dxx
… LDAT-S103090-Dxx |
2.7 | 8.6 |
702 (158) |
31.5 | 1935 (435) | 1.47 |
| LDAT-S103010-Exx
… LDAT-S103090-Exx |
0.9 | 2.9 | 10.5 | 1388 (312) | 0.30 | |
| LDAT-S104010-Dxx
… LDAT-S104090-Dxx |
2.7 | 11.5 |
929 (209) |
42.0 |
2578 (580) |
2.07 |
| LDAT-S104010-Exx
… LDAT-S104090-Exx |
1.3 | 5.7 | 21.0 | 0.86 | ||
| LDAT-S106010-Dxx
… LDAT-S106090-Dxx |
2.7 | 17.3 |
1403 (315) |
63.0 |
3871 (870) |
2.94 |
| LDAT-S106010-Exx
… LDAT-S106090-Exx |
1.3 | 8.6 | 31.5 | 1.28 |
