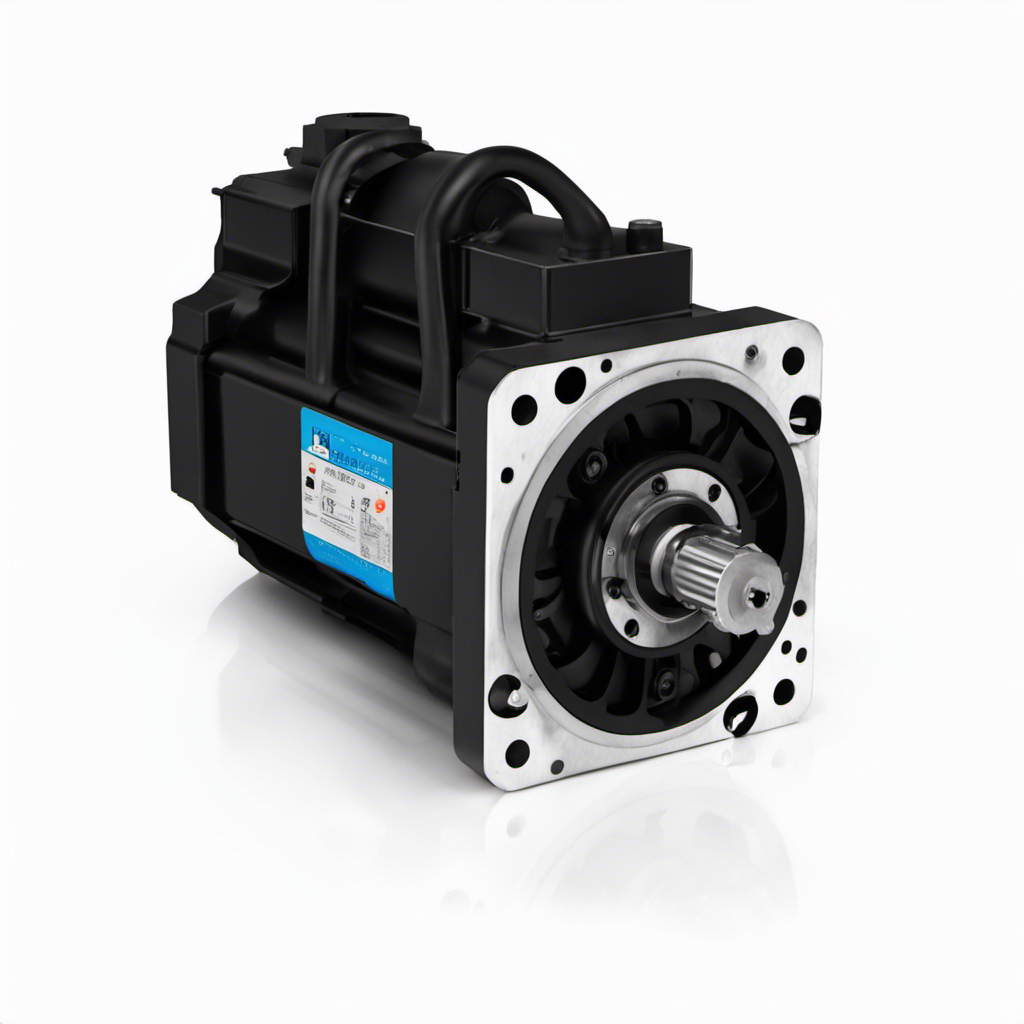

VPL-B1303C-CJ14AS SERVO MOTOR; KINETIX; PERMANENT MAGNET ROTARY MOTOR | Allen Bradley
Type number: VPL-B1303C-CJ14AS, Part No.: VPLB1303CCJ14AS, from manufacturer: Allen Bradley, Catagory: Kinetix VP Servo Motors Drives & Motors, VPL Low Inertia Motors
della101@163.com
| Module No. | VPL-B1303C-CJ14AS |
| Product name | Servo Motor, Rotary, Low Inertia, IEC, 240V AC, 1024 Sin/Cos, 4000 rpm Maximum, 8.25 N-M, 1/4 Turn Right Angle Rotatable DIN Connector, Hiperface Multi-Turn |
| Product description | VPL-B1303C-CJ14AS SERVO MOTOR; KINETIX; PERMANENT MAGNET ROTARY MOTOR | Allen Bradley |
| Part number | VPLB1303CCJ14AS |
| Allen Bradley recommendation product | VPL-B1303C-QK14AS VPL SERIES; KINETIX; PERMANENT MAGNET ROTARY MOTOR, SERVO MOTOR 480V AC | Allen Bradley |
| Voltage | 230 VAC, 240 VAC, 480 VAC |
| Manufacturer | Allen Bradley |
| Country of origin | United States |
| Warranty | 1-2 year |
| Shipping Method | 1.Ship worldwide, usually 5-7 days. 2. We use DHL, FedEx, UPS,TNT |
| Remark | If you need a specific firmware or series relating to VPL-B1303C-CJ14AS, please call or email us, we probably have it in our large inventory. |
VPL-B1303C-CJ14AS SERVO MOTOR; KINETIX; PERMANENT MAGNET ROTARY MOTOR | Allen Bradley
Motor Dimensions (063 and 075 mm frame sizes)
| Motor
Cat.No. |
AD
MM in.) |
HD
mm in.) |
LA
mm (in.) |
LD(1) mm(in | LE(1) mm(in. | L)
mm(in.) |
LB(1) mm(in.) | L-LR(2
mm(in |
D(4) mm
(in.) |
M
mm(in.) |
s(3)
MM in.) |
N(4) mm
(in.) |
P
MM in.) |
GE(4)
MM (in.) |
F(4) mm(in.) |
| VPL-A/B0631 |
69.5 (2.74) |
97.0 (3.82) |
9.0 (0.35) |
100.2
(3.94) |
60.3
(2.37) |
143.1
(5.63) |
123.1
(4.85) |
20.0 (0.787) |
9.0 (0.354) |
63.0 (2.480) |
5.80 (0.234) |
40.0 (1.575) |
55.0 (2.17) |
1.90 (0.075) |
3.0 (0.118 |
| VPL-A/B0632 | 125.2
(4.93) |
85.3
(3.36) |
168.1
(6.61) |
148.1
(5.83) |
|||||||||||
| VPL-A/B0633 | 150.2
(5.91) |
110.3
(4.34) |
193.1
(7.59) |
173.1
(6.81) |
|||||||||||
| VPL-A/B0751 |
77.0 (3.03) |
112.0 (4.41) |
9.0 (0.35) |
102.0
(4.02) |
62.1
(2.44) |
147.9
(5.82) |
124.9
(4.92) |
23.0 (0.906) |
11.0 (0.433) |
75.0 (2.953) |
5.80 (0.234) |
60.0 (2.362) |
70.0 (2.76) |
2.60 (0.102) |
4.0 (0.157) |
| VPL-A/B0752 | 127.0
(5.00) |
87.1
(3.43) |
172.9
(6.80) |
149.9
(5.90) |
|||||||||||
| VPI-A/B0753 | 152.0
(5.98) |
112.1
(4.41) |
197.9
(7.79) |
174.9
(6.89 |
(1)If ordering an VPL-A/B063xr or VPL-A/B07Sax motor with brake,add 30.6mm(1.20 in.)to dimension L,LB,LE,and LD.
(2)Tolerance for this dimension is±0.7mm(±0.028in.).
(3) Tolerance for this dimension is+0.3,-0.0mm(±0.006in.).
