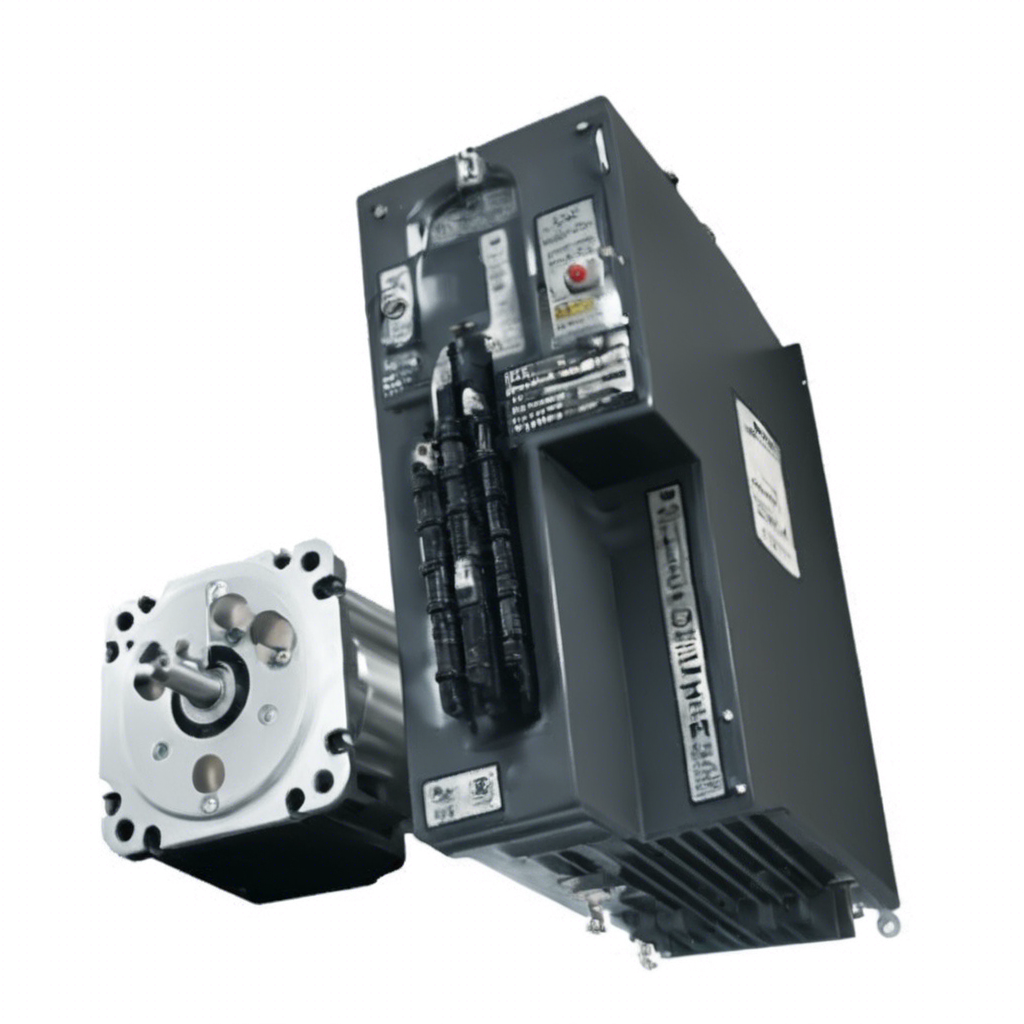

VPL-B1303C-QK14AS VPL SERIES; KINETIX; PERMANENT MAGNET ROTARY MOTOR, SERVO MOTOR 480V AC | Allen Bradley
Type number: VPL-B1303C-QK14AS, Part No.: VPLB1303CQK14AS, from manufacturer: Allen Bradley, Catagory: Kinetix VP Servo Motors Drives & Motors, VPL Low Inertia Motors
della101@163.com
| Module No. | VPL-B1303C-QK14AS |
| Product name | Servo Motor, Rotary, Low Inertia, IEC, 240V AC, 1024 Sin/Cos, 4000 rpm Maximum, 8.25 N-M, 1/4 Turn Right Angle Rotatable DIN Connector, Hiperface Multi-Turn |
| Product description | VPL-B1303C-QK14AS VPL SERIES; KINETIX; PERMANENT MAGNET ROTARY MOTOR, SERVO MOTOR 480V AC | Allen Bradley |
| Part number | VPLB1303CQK14AS |
| Allen Bradley recommendation product | VPL-B1303F-QK14AA VPL Low Inertia Motors, KINETIX; PERMANENT MAGNET ROTARY MOTOR | Allen Bradley |
| Voltage | 230 VAC, 240 VAC, 480 VAC |
| Manufacturer | Allen Bradley |
| Country of origin | United States |
| Warranty | 1-2 year |
| Shipping Method | 1.Ship worldwide, usually 5-7 days. 2. We use DHL, FedEx, UPS,TNT |
| Remark | If you need a specific firmware or series relating to VPL-B1303C-QK14AS, please call or email us, we probably have it in our large inventory. |
VPL-B1303C-QK14AS VPL SERIES; KINETIX; PERMANENT MAGNET ROTARY MOTOR, SERVO MOTOR 480V AC | Allen Bradley
Performance Level(PL)and Safety Integrity Level (SIL)
For safety-related control systems,Performance Level (PL),according to EN ISO 13849-1,and SIL levels,according to IEC EN 61508 and
EN 62061,include a rating of the system’s ability to perform its safety functions.All ofthe safety related components of the control system must be included in a risk assessment and the determination of the achieved levels.
Refer to the EN ISO 13849-1,IEC EN 61508,and EN 62061 standards for complete information on the requirements for PLand SIL determination.
Safety-related Parameters
A motor that is equipped with a Hiperface DSL functional safety-rated feedback sensor is designed to maintain the functional safety rating of the feedback sensor attached.The safery parameters of the feedback sensors are as follows.
| Attribute | MotorCat.No. | |
| VPL-xaxxxx-Wx1xAx | VPL-xxxXxx-Qx1xAx | |
| Safety Integrity Level(SIL) | SIL2(IEC61508),SIL CL2 (EN 62061) | |
| Probability of a Dangerous Failure per Hour (PFH) | 4.0E-081/h | 3.80 E-081/h |
| Safety (ategony | (AL3(ENISQ 13849 | |
| Performance level (PL) | PLd (ENISO 13849) | |
Motor Installation
Motor installation must comply with all local regulations and use ofequipment and installation practices that promote safety and electromagnetic compatibility:
- Allmotorsincludc a mounting pilot for aligning the motor on a machinc
- Preferred fasteners arestainless steel.
