VPL-B1303F-QK14AA VPL Low Inertia Motors, KINETIX; PERMANENT MAGNET ROTARY MOTOR | Allen Bradley
Type number: VPL-B1303F-QK14AA, Part No.: VPLB1303FQK14AA, from manufacturer: Allen Bradley, Catagory: Kinetix VP Servo Motors Drives & Motors, VPL Low Inertia Motors
della101@163.com
| Module No. | VPL-B1303F-QK14AA |

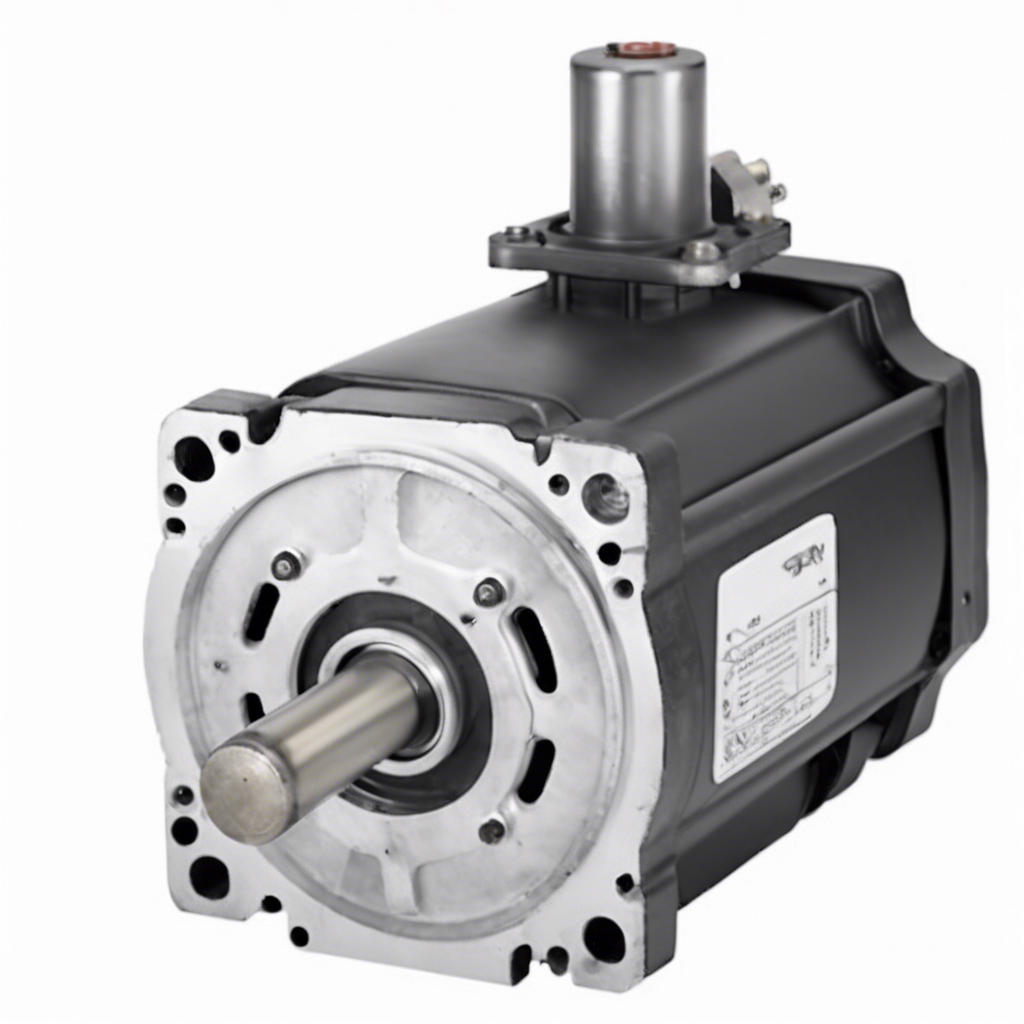

| Product name | Servo Motor, Rotary, Low Inertia, IEC, 240V AC, 1024 Sin/Cos, 4000 rpm Maximum, 8.25 N-M, 1/4 Turn Right Angle Rotatable DIN Connector, Hiperface Multi-Turn |
| Product description | VPL-B1303F-QK14AA VPL Low Inertia Motors, KINETIX; PERMANENT MAGNET ROTARY MOTOR | Allen Bradley |
| Part number | VPLB1303FQK14AA |
| Allen Bradley recommendation product | VPL-B1303F-QK14AS SERVO MOTOR; MP SERIES; KINETIX; PERMANENT MAGNET ROTARY MOTOR | Allen Bradley |
| Voltage | 230 VAC, 240 VAC, 480 VAC |
| Manufacturer | Allen Bradley |
| Country of origin | United States |
| Warranty | 1-2 year |
| Shipping Method | 1.Ship worldwide, usually 5-7 days. 2. We use DHL, FedEx, UPS,TNT |
| Remark | If you need a specific firmware or series relating to VPL-B1303F-QK14AA, please call or email us, we probably have it in our large inventory. |
VPL-B1303F-QK14AA VPL Low Inertia Motors, KINETIX; PERMANENT MAGNET ROTARY MOTOR | Allen Bradley
Functional Safety
Motors that are equipped with a Hiperface DSL functional safety-rated feedback sensor are designed in compliance with the requirements of the following SICK STEGMANN GmbH documentation to maintain the functional safety rating of the feedback sensor attached.See Catalog
Number Explanation on page 2 for details about each option.
| Motor Cat.No | Feedback Sensor Functional-safety Reference Documentation(SICK STEGMANN GmbH) | ||||||||
| VPL-XxXcxx-Q | HIPERFACE DSL Safety Manual,publication 8017596/YLRO | EFM50-2 | Safe | Motor | Feedback | Systems | Operating | Instructions,publication | 8019321/2016-02-17 |
| VPL-XXXxx-W | EKM36-2 | Safe | Motor | Feedback | Systems | Operating | Instructions,publication | 8019481/2016-02-23 | |
IMPORTANT
In accordance with the feedback sensor manufacturer,you must mount a HIPERFACE DSL motor feedback system(used for a safety function)in an nstallation situation with a minimum protection dass ofIP54 according to standard IEC60529:1989 +A1:1999+A2:2013.
Certification
The TUV Rheinland group has approved Kinetix VP low-inertia servo motors equipped with functional safety certified Hiperface DSL digital encoders to be capable ofletting a system achieve a functional safety rating up to Performance Leveld (PLd)and safety category 3(CAT.3)per EN ISO 13849,and SIL 2 per IEC 61508,EN 61800-5-2,and EN 62061 when used in conjunction with variable frequency drives that satisfy functional safety requirements of the HIPERFACE DSL Saferty Manual (SICK STEGMANN GmbH,publication 8017596/YLR0).
To view the TUV Rheinland certificate and other product certifications currently available from Rockwell Auromation,go to
http://www.rockwellautomation.com/global/cerification/overview.page.
Important Safety Considerations
In addition to the instructions throughour this document,you are also responsible for the following:
- Complete a machine-level risk assessment.
- Certificationof themachine to the desired EN ISO 13849 performance level or EN 62061 SIL level.
- Projcct management and proof testing in accordance with EN61800-5-2.
- The safe-motor feedback system hasamaximum Mission Time of 20 years.After this time,the feedback system must be taken out of service.
- The motorfedbacksystem cannor supporr safety functions thar are basedon theabsolute position withouradditional measures.In thecase of safety functions that are based on the safe absolute position,the motor feedback system supplies only one channel without safety-related diagnostics upon powerup.You must implement a second channel by using other measures.
- The motor feedbacksystemis not able to create a safe state for the drive system independently.The drive system creates the safe state as a response to an error displayed by the motor feedback system.
- To planand usemotors equipped with safety-rated feedback sensors requires technical skills that are not explained in this document.
